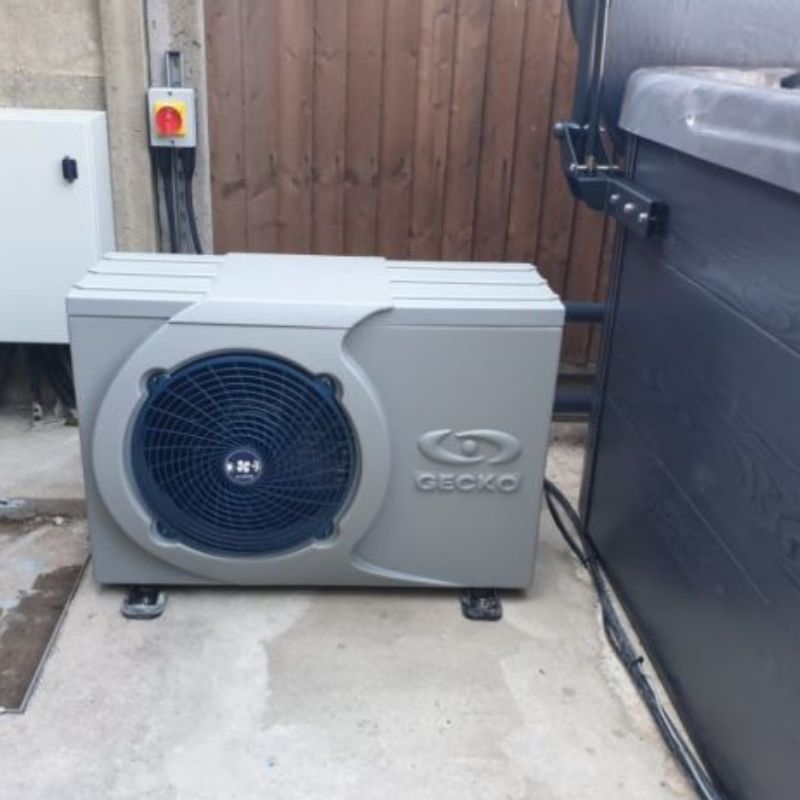

Gecko Air Source Heat Pump For Hot Tubs

A new way to regulate the water of your spa!

Here comes Gecko’s new heat pump solution. Using Gecko's IN.TEMP has never been so easy,  Simply connect it to a Y series control that supports it and you’re good to go. Automatic detection, smart power management and no additional power circuit required, the IN.TEMP powers directly from the spa control.

Air sourced heat pumps will allow you to save up to 75% energy consumption in comparison with electric elements. The icing on the cake: Gecko’s IN.TEMP also uses an eco-friendly refrigerant.

With IN.TEMP, you can choose one of its six modes of operation that suits you the best, depending on your climate. Smart modes including Eco Heat, Smart Heat, Eco Auto, Smart Auto, Cool and Electric, let you take full advantage of your IN.TEMP to optimize your savings.

Price £2199 inc fitting, price quoted is for 50-mile radius of NG6 40p per mile thereafter (this may vary dependant on current fuel prices)

Product Overview

IN.TEMP only works with Gecko’s IN.YE and IN.YT control systems equipped with a RS-485 interface and IN.TOUCH 2 remote control app.

Compatible with a wide selection of topsides such as IN.K330, IN.K500, IN.K800 & IN.K1000 which auto-detect by the system upon connection.

Please contact us to confirm compatibility with your control system before ordering.

Product Specification:

Input supply: 220V ~ 240V, 50Hz
Power input (max): 5kw: 1.29kw / 7.5kw: 1.91kw
Rated current: 5kw: 3.9A / 7.5KW: 5.49a
Max current: 5kw: 6.07A / 7.5kw: 8.67A
Communication supply: 10-12 VDC, 80mA
Operating temperature: -5 °C (23 °F) to 43 °C (109 °F)
Water resistance: IPX4
Compressor: Rotary (GMCC)
Pressure: Min: 1,5 MPa (218 psi) Max: 4,15 MPa (609 psi)
Refrigerant: 5kw: R32/650g (22,9oz) / 7.5kw: R32/800g (28,2oz)
Best efficiency flow rate: 5kw: 2,27 M³/h (10 GPM)* / 7.5kw: 3,41 M³/h (15 GPM)*
Flow detector: Flow switch
Noise at 1 m: 5kw: 51,5dB(A) 62dB(A) / 7.5kw: 56,5dB(A)
